Mini.12 magnetic track lighting

About Mini.12

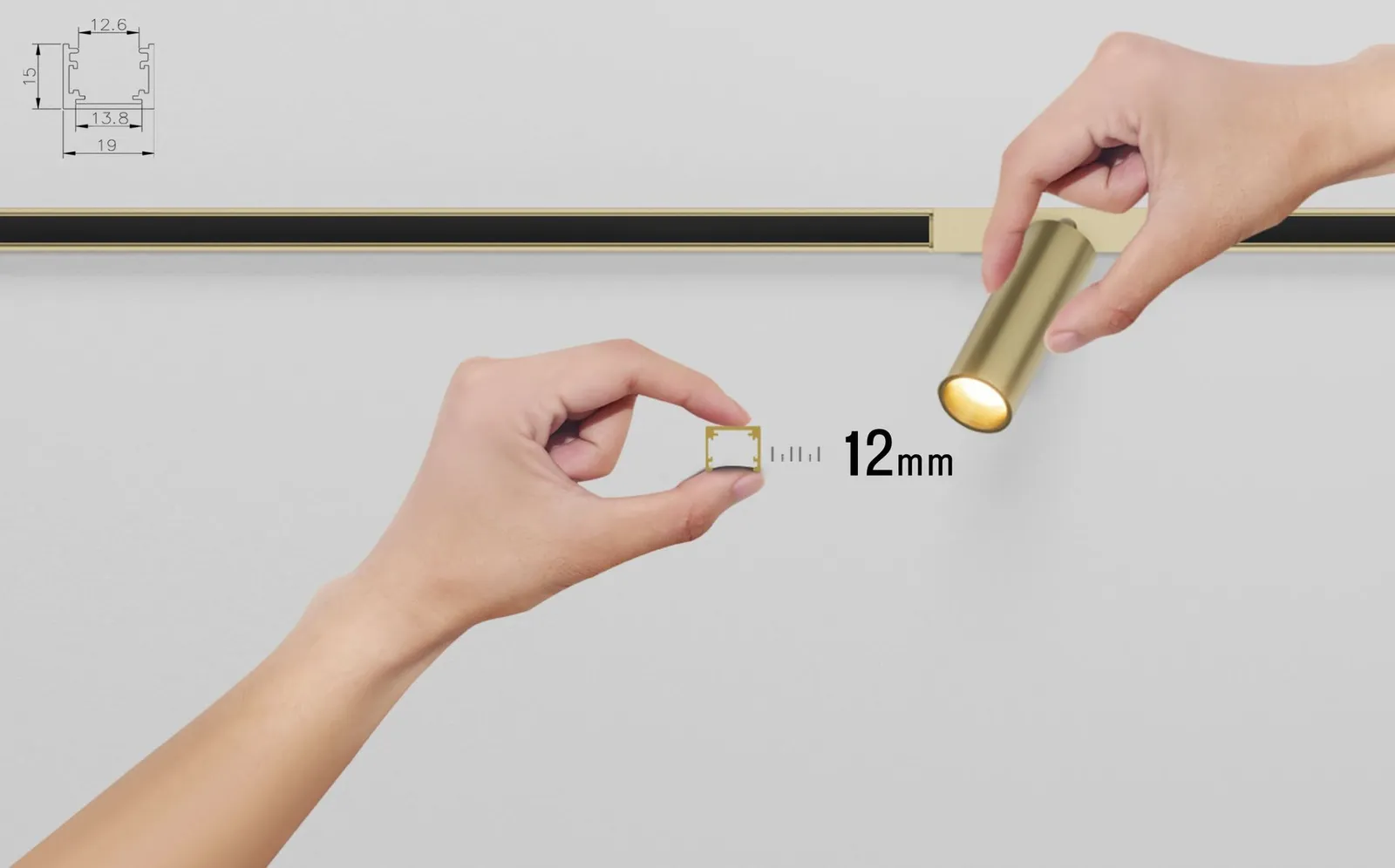

Mini.12 is a 12 mm magnetic track lighting system on 48 V DC. Modules attach to the track magnetically and can be moved as displays and layouts change, which suits stores, galleries and residences that are rearranged often.

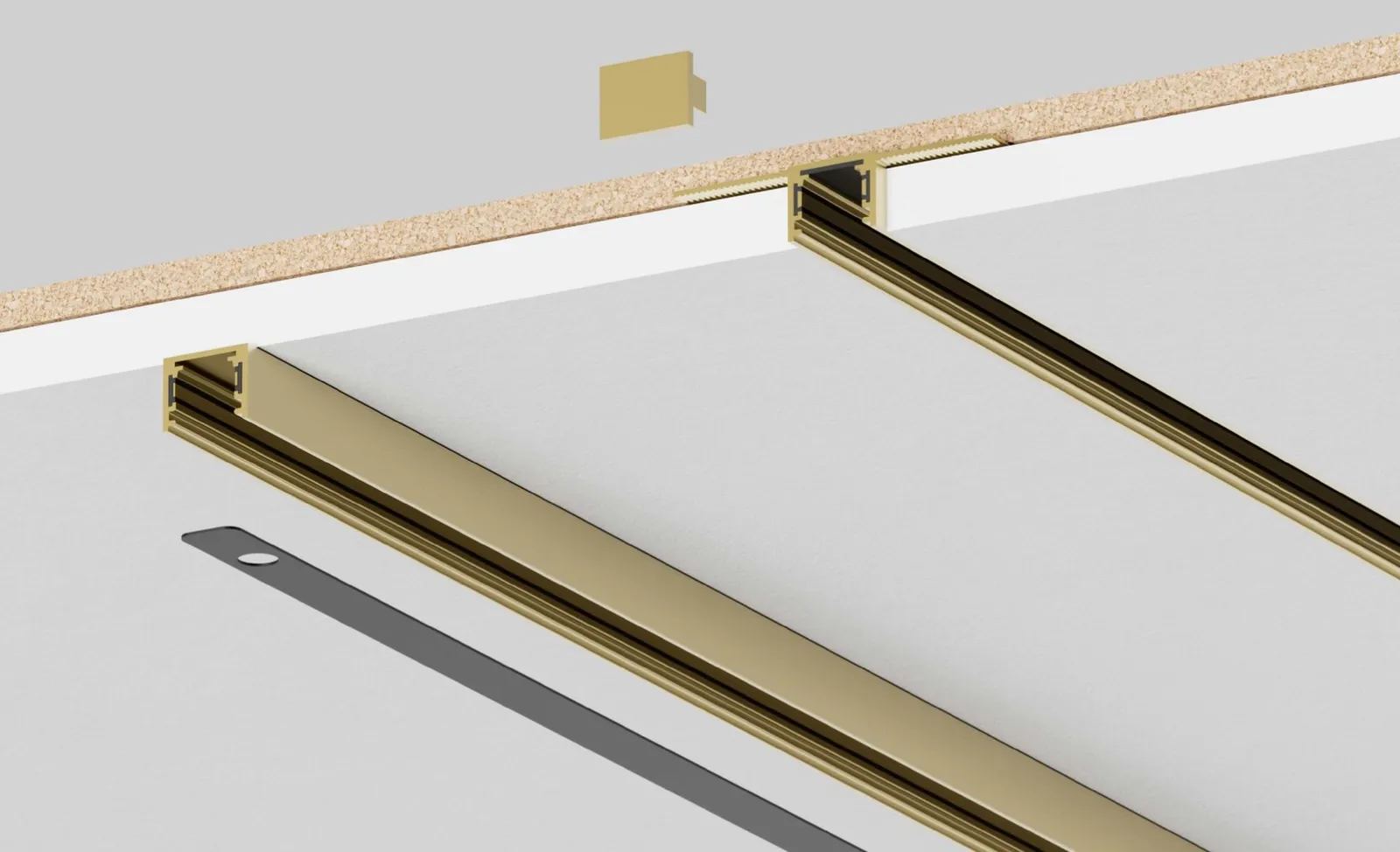

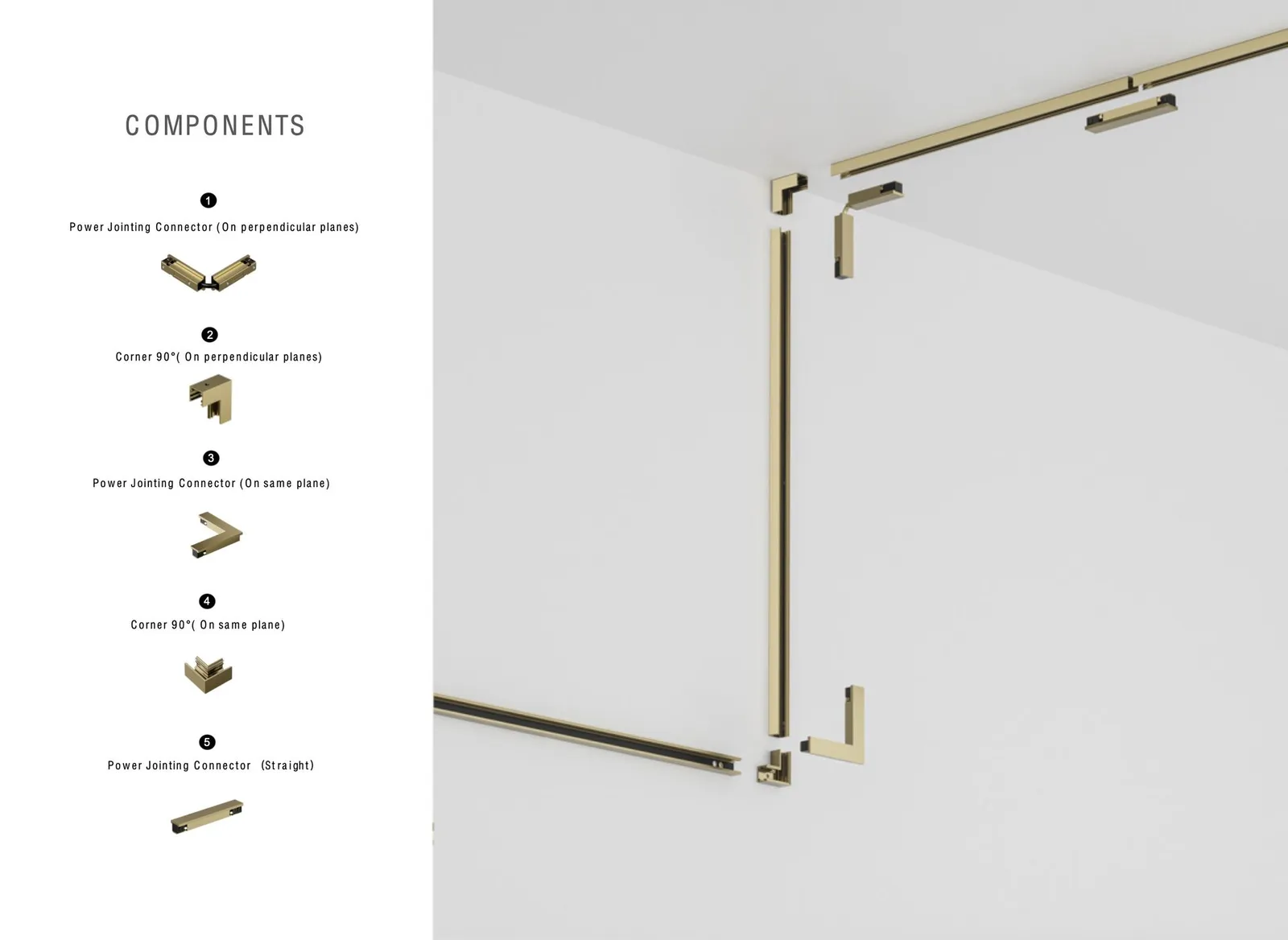

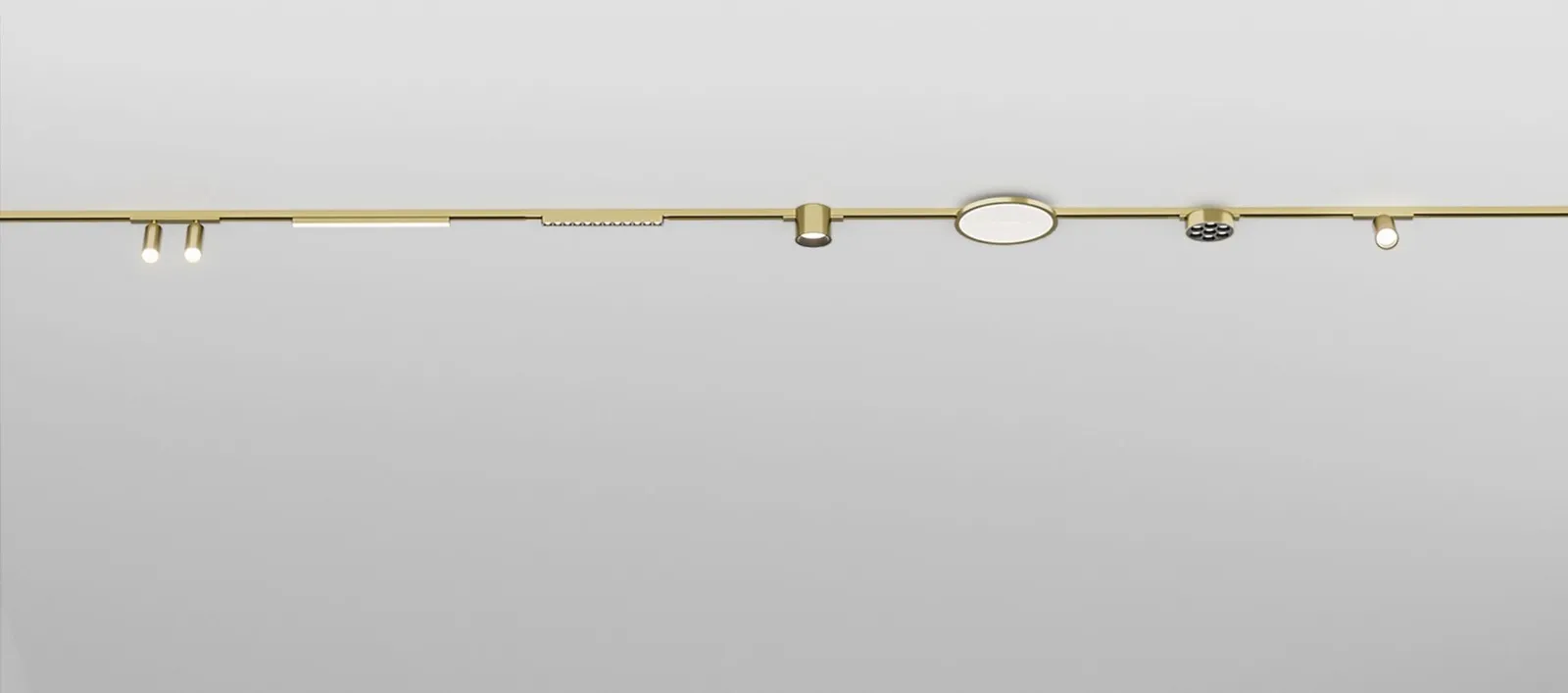

The track comes in recessed and surface-mounted profiles for ceilings and walls, and surface-mounted profiles can be suspended with a suspension kit. Profiles come in 1 m and 1.5 m lengths and can be shortened to the exact length of a run. Connectors take the track along straight runs, round 90° corners and across changes of plane.

Seven module types

Spotlight, single or twin head: Ø35 or Ø45 mm heads, 15°, 24° or 36° beam, rotates 355°.
Grid linear light: 231 and 459 mm long, 24° beam.
Line floodlight: 301 and 601 mm long, 120° beam.
Round grille light: Ø74 and Ø95 mm, 36° beam.
Round flood light: Ø74 and Ø95 mm, 120° beam.
Downlight: Ø70 mm, 24° beam.
Circular floodlight: Ø198 mm, 120° beam.

Every module in the catalogue is 3000 K, with colour rendering above CRI 90 and MacAdam step 3 colour consistency. Track and modules can be made in custom colours. The configuration for your project is confirmed in the offer.

Models

Model	Name	Key specifications
MN12011	Spotlight, Ø35 × 70 mm	6 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12012	Spotlight, Ø35 × 100 mm	8 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12013	Spotlight, Ø45 × 70 mm	8 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12014	Spotlight, Ø45 × 100 mm	10 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12021	Twin spotlight, 2 × Ø35 × 70 mm	12 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12022	Twin spotlight, 2 × Ø35 × 100 mm	16 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12023	Twin spotlight, 2 × Ø45 × 70 mm	16 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12024	Twin spotlight, 2 × Ø45 × 100 mm	20 W 3000 K, CRI > 90 Ledvance COB LED Beam 15°, 24° or 36°
MN12031	Line floodlight, 301 × 19 × 27 mm	12 W 3000 K, CRI > 90 Ledvance SMD LED Beam 120°
MN12032	Line floodlight, 601 × 19 × 27 mm	24 W 3000 K, CRI > 90 Ledvance SMD LED Beam 120°
MN12041	Grid linear light, 231 × 19 × 27 mm	10 W 3000 K, CRI > 90 Ledvance SMD LED Beam 24°
MN12042	Grid linear light, 459 × 19 × 27 mm	20 W 3000 K, CRI > 90 Ledvance SMD LED Beam 24°
MN12051	Round flood light, Ø74 × 28 mm	6 W 3000 K, CRI > 90 Ledvance SMD LED Beam 120°
MN12052	Round flood light, Ø95 × 28 mm	8 W 3000 K, CRI > 90 Ledvance SMD LED Beam 120°
MN12061	Round grille light, Ø74 × 28 mm	6 W 3000 K, CRI > 90 Sanan SMD LED Beam 36°
MN12062	Round grille light, Ø95 × 28 mm	8 W 3000 K, CRI > 90 Sanan SMD LED Beam 36°
MN1207	Downlight, Ø70 × 60 mm	8 W 3000 K, CRI > 90 Ledvance COB LED Beam 24°
MN1208	Circular floodlight, Ø198 × 27 mm	15 W 3000 K, CRI > 90 Sanan SMD LED Beam 120°
