DT8 DALI Rotary Master Controller

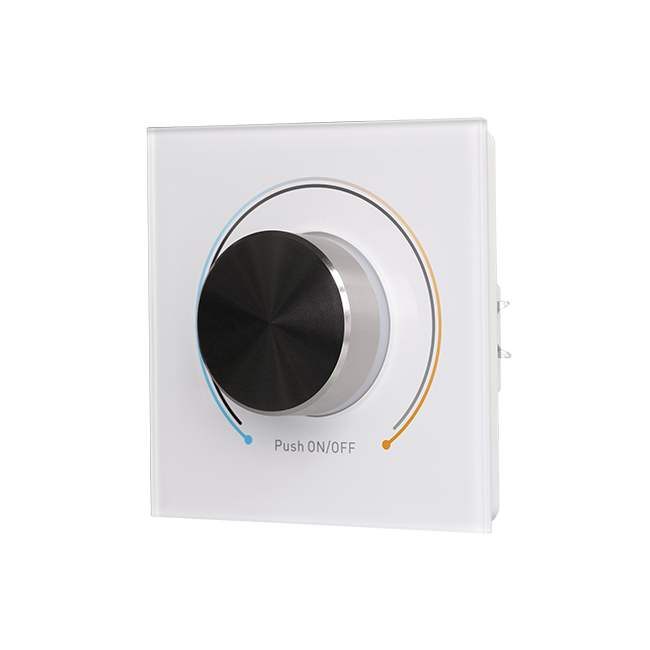

The HL-2100RB-CCT is a dual-color DT8 DALI rotary master controller designed for precise dimming and color temperature adjustment of luminaires or transformers with a DALI interface. Developed by Hublit, this device offers intuitive control over tunable white LED lighting systems.

Key Features:
• DALI DT8 Compliance: Compatible with DT8 DALI systems, facilitating seamless integration with a variety of dual-color DALI DT8 devices.
• Built-in DALI Power Supply: Equipped with an integrated DALI power supply that operates with a wide input range of 100-240V AC, capable of powering the DALI bus when connected to AC mains.
• Flexible Powering Options: Can be powered by the DALI bus when not connected to AC mains, offering versatility in installation scenarios.
• Multiple Control Points: Supports the integration of up to 100 DALI Electronic Control Gears (ECGs) with a maximum of 2 active DALI MCUs powered by AC mains and 2 passive MCUs powered by the DALI bus, allowing for multiple control points within the same circuit.
• User-Friendly Operation: Features a standard 4mm diameter rotary axis suitable for European installations, enabling users to switch between dimming and color temperature adjustment modes with a double-click, and to set or delete minimum brightness levels through specific press-and-hold actions.

Technical Specifications:
• Operating Voltage: 100-240V AC
• Power Consumption: Maximum 2.3W
• DALI Connection: DA+/DA- terminals, supporting a maximum cable length of 300 meters, with a DALI power supply output current of up to 100mA.
• Permissible Cable Cross-Section: 0.5 to 1.5 mm²
• Ambient Temperature Range: 0 to +50°C
• Protection Type: IP20
• Dimensions: 80mm x 80mm x 53mm

Applications:

The HL-2100RB-CCT is ideal for applications requiring precise control over lighting intensity and color temperature, such as:
• Residential Lighting: Enhancing ambiance in living spaces with adjustable lighting settings.
• Commercial Environments: Providing adaptable lighting solutions in offices, retail stores, and hospitality venues.
• Architectural Installations: Offering dynamic lighting control in museums, galleries, and other exhibition spaces.
