Ethernet (IP) DALI-2 Master Controller

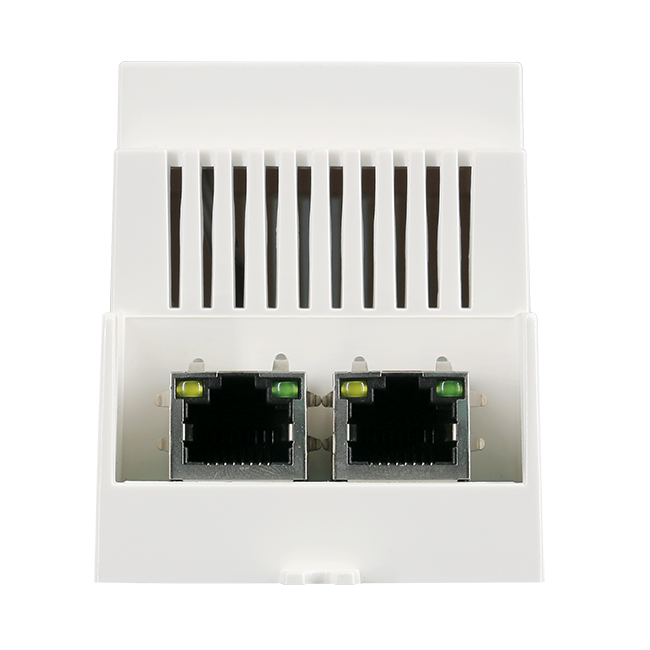

The HL-GW-TDA is a DIN rail-mounted Ethernet (IP) DALI gateway developed by Hublit. It facilitates the integration of DALI (Digital Addressable Lighting Interface) lighting systems with IP-based networks, enabling centralized control and monitoring through compatible applications.

Key Features:
• DALI Device Compatibility: Supports various DALI device types, including DT6, DT8 Tc, DT8 XY, and DT8 RGBWAF, ensuring versatility in controlling different lighting devices.
• Integrated DALI Power Supply: Equipped with a built-in 250mA DALI power supply, eliminating the need for external DALI power sources and simplifying installation.
• Comprehensive Control Capabilities: Enables broadcast control, individual lamp control, group control, and supports timing, scene, and other linkage control methods, providing flexibility in lighting management.
• Network Integration: Connects via Ethernet (RJ45), allowing seamless integration into IP-based networks for centralized control.
• User-Friendly Configuration: Offers easy and quick setup through compatible mobile applications, streamlining the configuration process.
• Scheduling and Timer Functions: Supports cycle schedule configuration and timer task settings, enhancing automation capabilities within the lighting system.

Technical Specifications:
• Input Voltage: 24V DC
• Output Voltage: 12-22.5V DC
• Output Current: Up to 250mA
• Operating Temperature: -20°C to +50°C
• Dimensions: 110mm (L) x 53mm (W) x 65mm (H)
• Ingress Protection: IP20

Applications:

The HL-GW-TDA is ideal for integrating DALI lighting systems into IP-based networks, making it suitable for both residential and commercial environments. Its comprehensive protocol support and advanced scheduling capabilities make it a versatile solution for complex lighting control scenarios.
